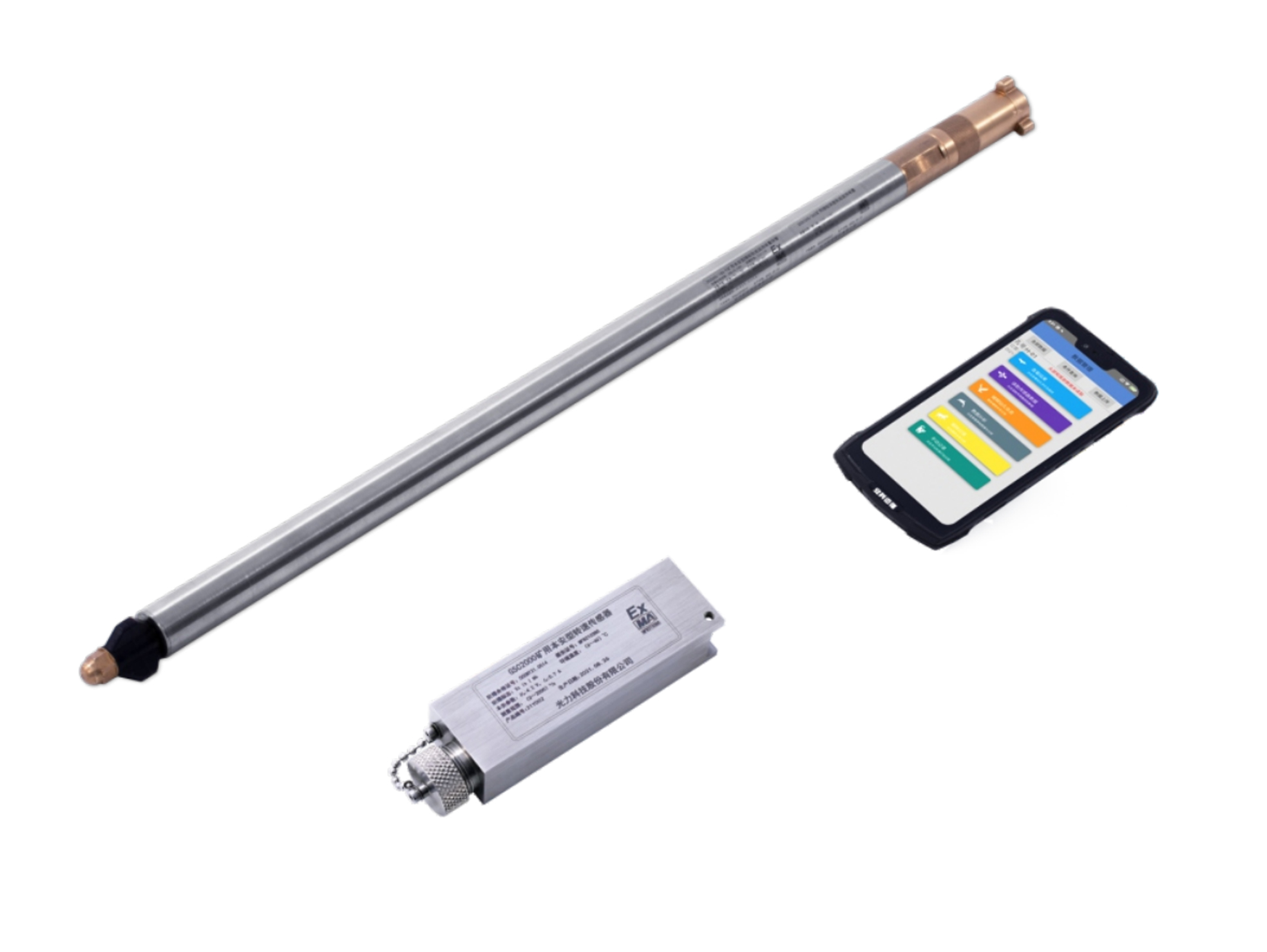

The ZSG3.7 mining borehole trajectory measurement device is a tool used for monitoring the trajectory of boreholes during drilling operations. It measures the borehole’s inclination angle and azimuth, and sends the data to a smartphone app via wireless transmission for real-time display and analysis.

• Utilizes inertial navigation technology for automatic borehole trajectory measurement, eliminating the need for manual operation.
• Capable of measuring in various drilling environments without interference from magnetic fields.
• Provides real-time monitoring of borehole inclination, azimuth, and depth.
• The handheld device and app allow for comprehensive analysis of the borehole’s trajectory, including inclination, azimuth, and depth.
• Supports wireless data transmission to the smartphone app, facilitating real-time display and analysis.
• Designed for harsh environments with high reliability and accuracy.

Measurement Range:

• Inclination: (-90° to 90°)
• Azimuth: 0 to 360°
• Measurement Accuracy: Inclination: ±0.1°; Azimuth: ±1.0°
• Resolution: 0.01°
• Maximum Angular Velocity: ≥2000°/s
• System Error: ≤0.4% FS

Protection Class:

• Probe: IP68
• Host: IP65

Explosion-Proof Type:

• 7 Probe: Intrinsically Safe, Exia I Ma
• GSC2000 Host: Intrinsically Safe, Exib I Mb

KTW192 Battery Pack:

• Intrinsically Safe, Exib I Mb
