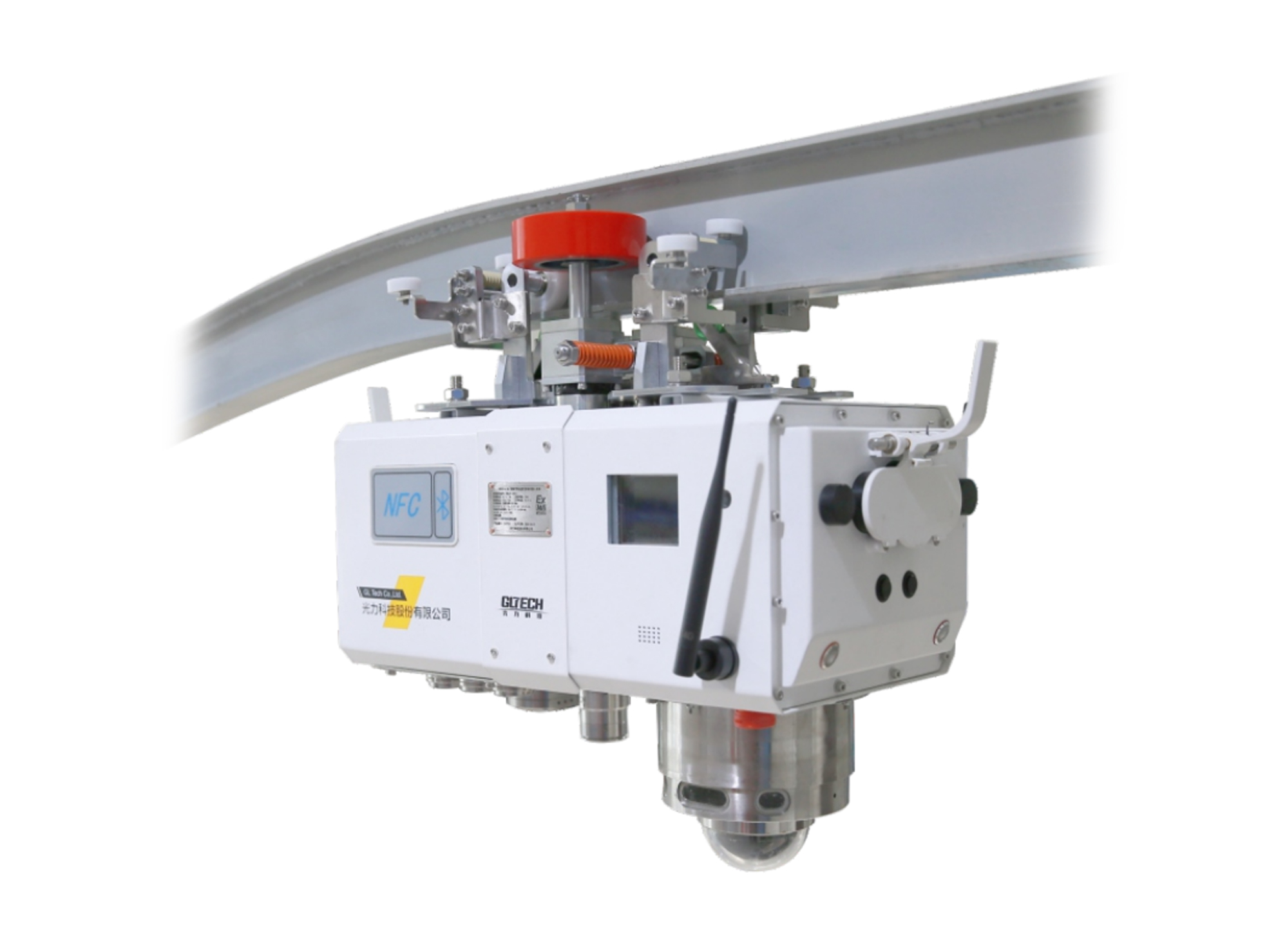

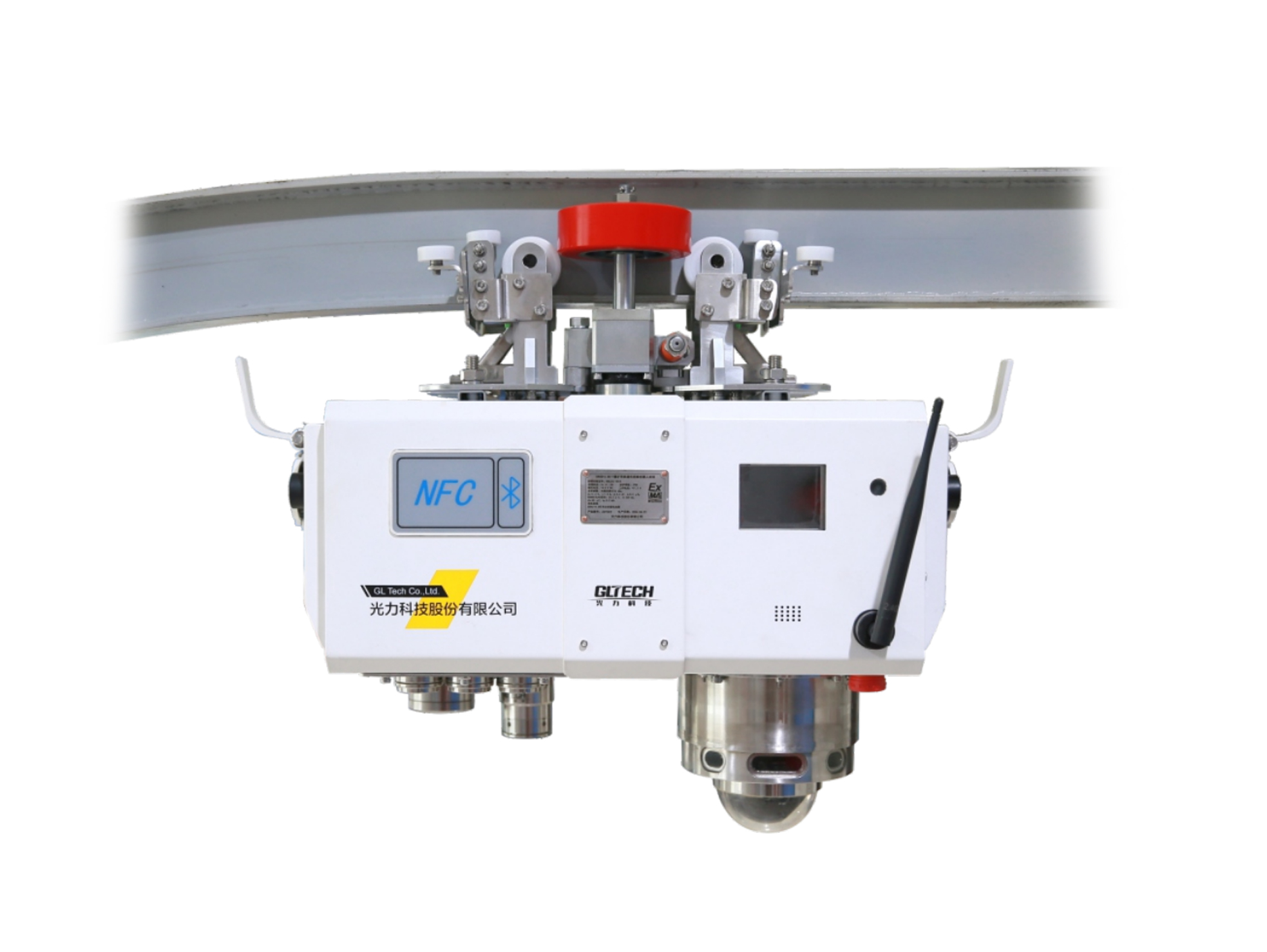

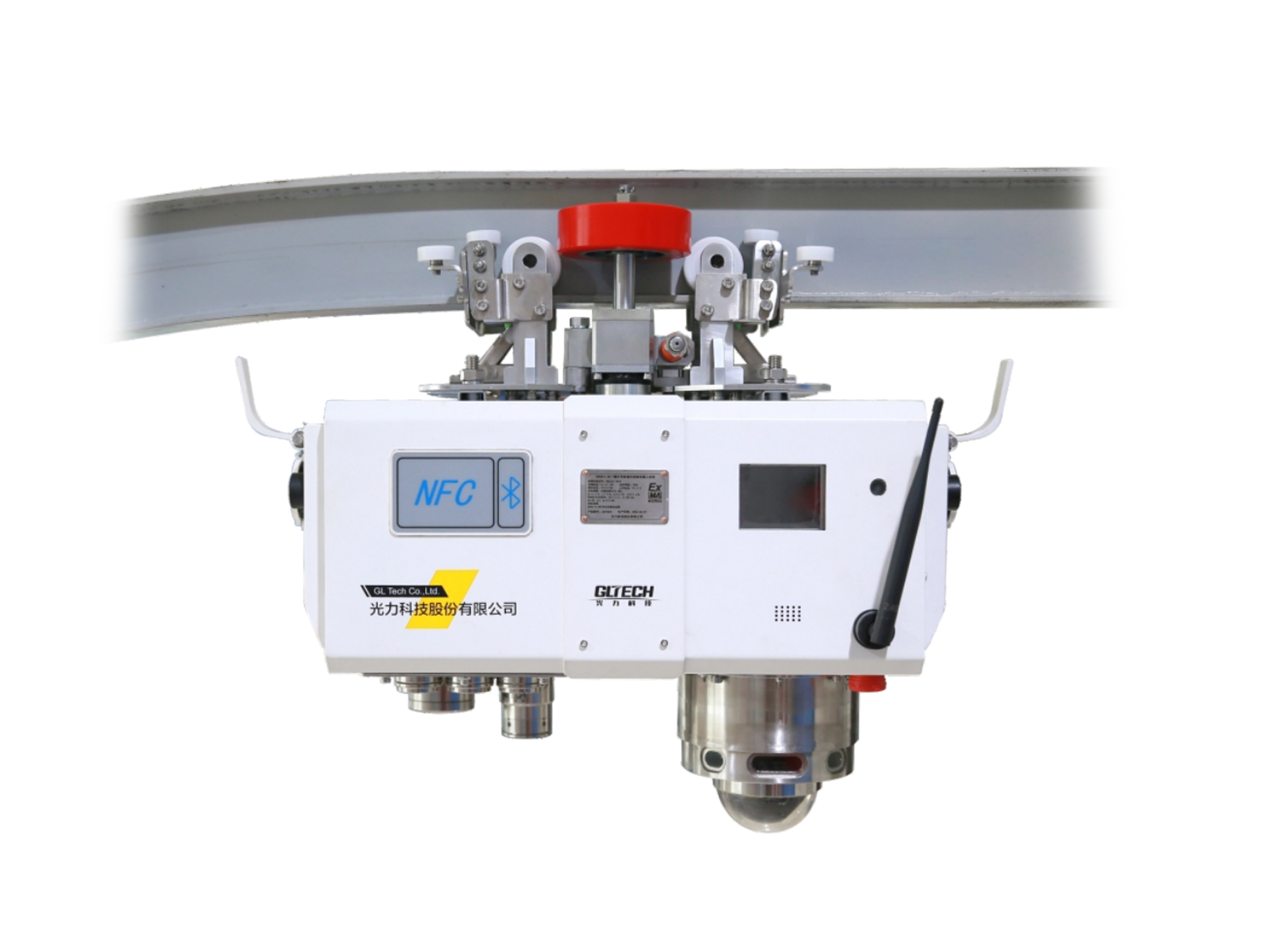

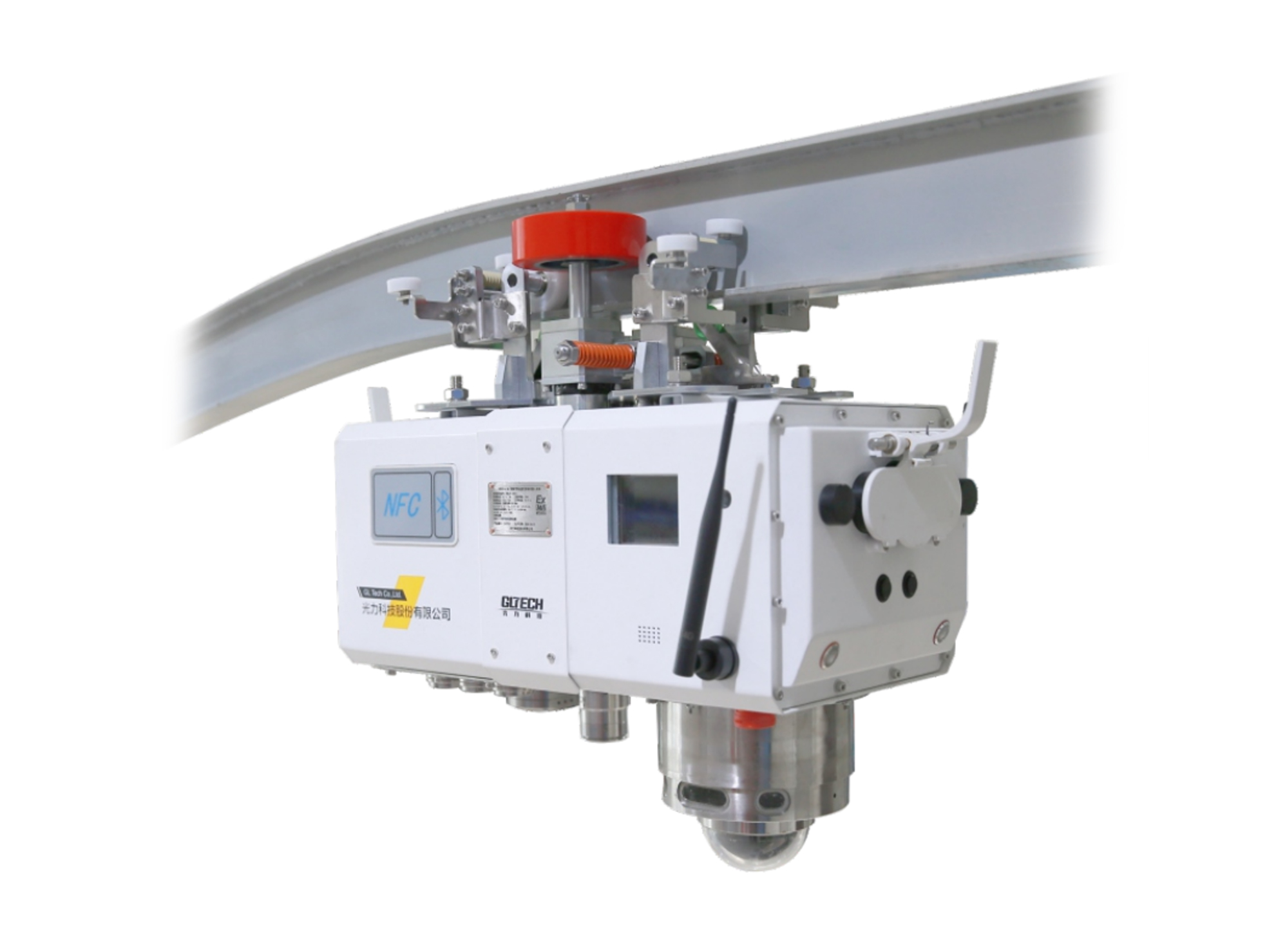

The KRXG14.8C coal mine rail inspection robot is designed for automatic patrol inspections along railways in coal mines. Equipped with various sensors, it can monitor parameters such as gas concentration, temperature, and humidity. The robot can also store and transmit data in real-time, making it suitable for use in hazardous environments.

Travel Mechanism:

• Autonomous travel: follows predefined routes with obstacle avoidance, slope climbing, and low energy consumption.
• Intelligent startup: uses RFID (NFC) to recognize the start point and initiate automatic patrols.
• Capable of detecting track conditions in real-time.

Inspection Mechanism:

• Equipped with various sensors to monitor gas concentrations (CH4, CO, CO2, O2, H2S), temperature, humidity, smoke, and environmental pressure.
• Capable of high-precision data collection and real-time transmission.

Control Mechanism:

• Manual and automatic control modes available.
• Equipped with safety protection features for human-machine interaction.
• Capable of docking with charging stations for autonomous recharging.

Additional Features:

• Infrared night vision for low-light conditions.
• Data storage and real-time transmission capabilities.
• Equipped with multiple sensors for comprehensive monitoring.
• Supports remote monitoring and control via wireless networks.
• Integrated with personnel recognition and obstacle detection features.
• High adaptability for complex underground environments.

Measurement Range:

• Inclination: (-90° to 90°)
• Azimuth: 0 to 360°
• Measurement Accuracy: Inclination: ±0.1°; Azimuth: ±1.0°
• Resolution: 0.01°
• Maximum Angular Velocity: ≥2000°/s
• System Error: ≤0.4% FS

Protection Class:

• Probe: IP68
• Host: IP65

Explosion-Proof Type:

• 7 Probe: Intrinsically Safe, Exia I Ma
• GSC2000 Host: Intrinsically Safe, Exib I Mb

KTW192 Battery Pack:

• Intrinsically Safe, Exib I Mb
