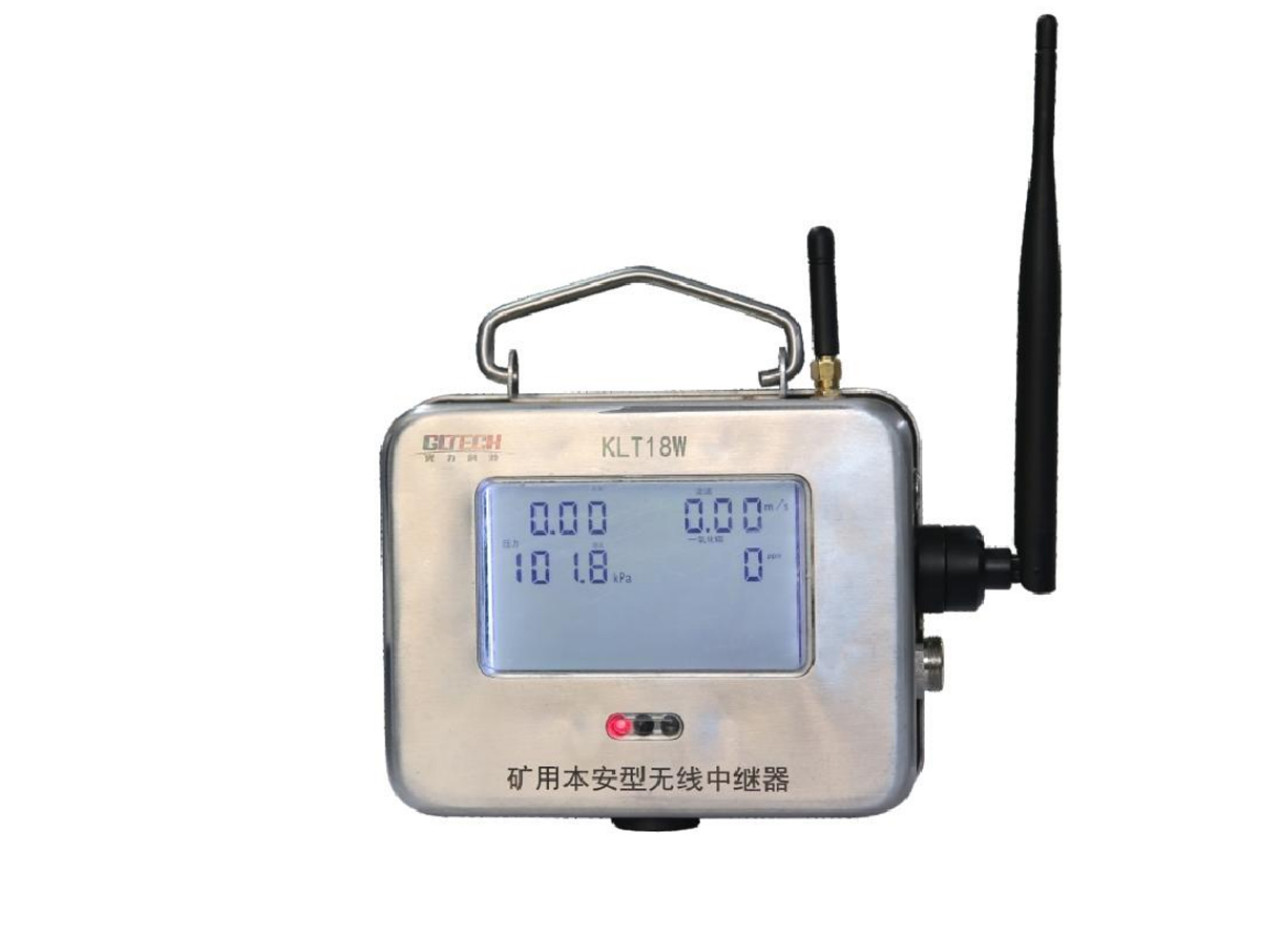

KLT18W
The KLT18W Intrinsically Safe Wireless Repeater for Mining is primarily used for bridging wireless signals in underground coal mines. It can also function as a simple base station for wireless networking in mines. Additionally, it can convert wireless sensor signals into wired signals for data transmission. Paired with an intelligent terminal, it enables parameter configuration, data collection, and display functions for underground equipment.
Features
Technical Parameter
| Operating Voltage | (9-25)V DC (Intrinsically Safe Power Supply) |
| RS485 Signal | When using RS485 for signal transmission, the repeater’s transmission distance to associated devices is not less than 2 km. |
| Bluetooth | Transmission power ≤ 20 dBm, reception sensitivity -60 dBm, transmission distance not less than 10 m. |
| Wireless RF | Transmission power ≤ 20 dBm, reception sensitivity -60 dBm, transmission distance not less than 200 m. |
| Wireless Monitoring Capacity | The repeater can simultaneously receive data from 3 wireless devices. |
| Explosion-proof Type | Intrinsically safe for mining (Explosion-proof mark: ExiaIMa). |
| Protection Rating | IP65 |
